Description

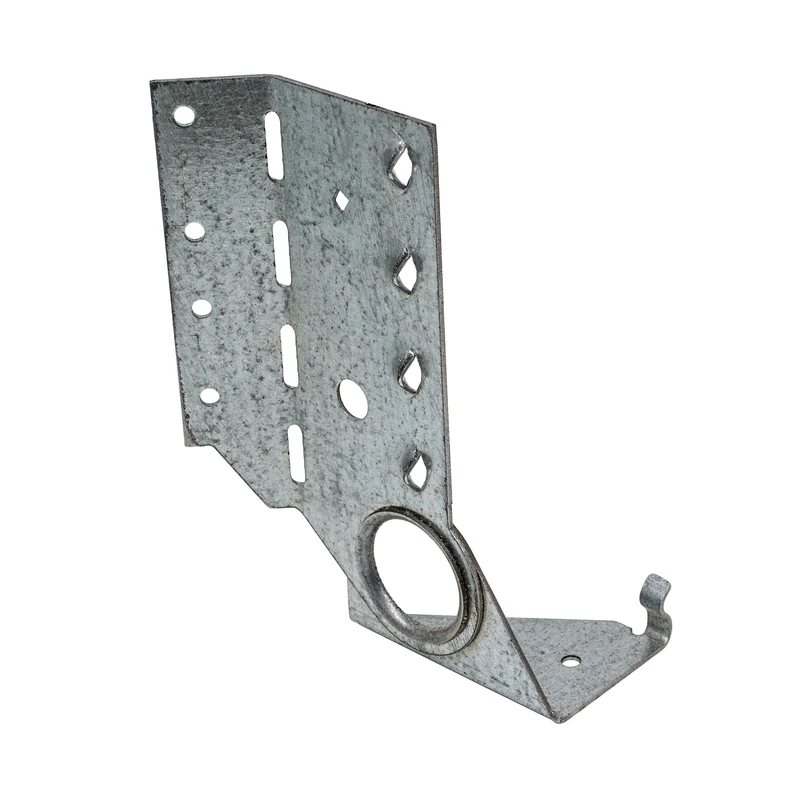

the innovative lssj is ideal for connecting jack rafters to hip members. featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the lssj is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. the lssj’s header flange allows for easy skew adjustment, from 0? to 45?. it ships pre-bent at 45? so is ready to place for most typical applications.
Hanger installs from one side with all fastener holes easily accessible
Can be installed as a retrofit
Seat grip makes setting the hanger quick and easy
Accommodates roof pitches from 0:12 to 12:12
Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone
Made from 18-gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Width: 1-9/16 in.
Skewed Left
Install with (6) 0.148 in. x 3 in. or (6) 0.148 in. x 1-1/2 in. nails in the face and (6) 0.148 in. x 3 in. or (6) 0.148 in. x 1-1/2 in. nails in the joist
Height: 4-3/8 in.
